Commands and scripting in PyMOL 3

0.1 Overview

To be an advanced user of PyMOL, who need to use commands and scripting. This tutorial provides a basic introduction to molecular visualization using commands and scripting in PyMOL 3. We will first introduce some general points about how best to work with the command line and then go through different usage examples that demonstrate basic functionality. At the end of the text we have provided a list of commands that can be used to look up useful commands.

0.2 Controling PyMOL on the command line and through scripting

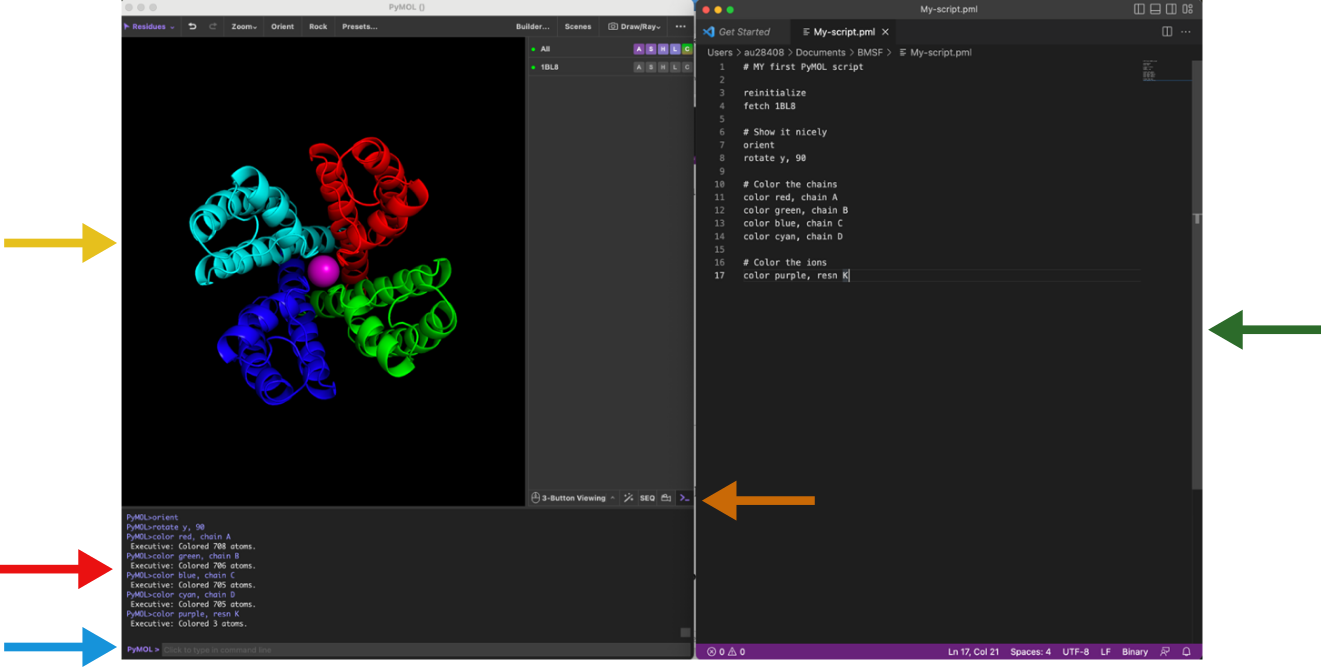

To work with commands and scripting you need to focus on the following windows and panels as shown in Figure 1. You need to think in input (the command/script) and output (the visualization). The command line is located at the bottom of the window and if you want a repository of commands, you can have them stored in a text editor on the side. The output visualization is seen in the main display panel. The log window contains log of which commands have been executed and details of selections. Note also the ">_" button to hide/show the log window. A script is a list of commands in a text file that can be executed on the command line. A script helps you build up complex visualization and analysis pipelines that can be modified and reused.

Figure 1: The PyMOL graphical user interface with PDB ID 1tg7 loaded

0.3 Introducing the command line

All commands through the menu system can also be provided through the PyMOL command line console. You might find this complicated at first, but once you master it, you will find this very useful (if not essential).

To load a structure into PyMOL use the fetch command on the command line:

fetch 1rg7

You can also load a PDB file from your own file system using the load command:

load 1rg7.pdb

To show a particular representation, use the show command followed the by representation name:

show cartoon (shows cartoon for all objects)
show lines (shows lines for all objects)

To hide a representation use

hide lines

You can also choose to show only one particular representation with the as command:

as cartoon
as ribbon

The zoom and orient commands are the equivalent to the zoom and orient buttons, respectively:

zoom
orient

We will come back to more useful commands through the tutorial. Make sure you use

as lines

before you continue to the next section.

0.4 Atom selections with the command line

Using the command line enables more versatile and specific atom selections. The “select” command enables atom selection through the command line. The command can be combined with various keywords specifying which atoms, residues, or chains to select. Here are some examples:

Command	Description	Example
select resname	Selects the residue(s) by name. e.g. select residue with name MTX.	select resname MTX
select resid	Selects the residue(s) by identifier. e.g. select residue with ID 161.	select resid 161
select chain	Selects atoms in the specified chain. e.g. select chain with ID A	select chain A
select name	Selects atoms with the specified name. e.g. select all CA atoms	select name CA

The selection commands above will generate a selection with the default name (sele). You can specify another name by adding it to the command like this:

Create a new selection called mtx:

select mtx, resname MTX

Create a new selection called protein:

select protein, resid 1-160

Similarly to using the in range (-) symbol, you can use the addition (+) syntax. The following command will select the residues in rage 15 to 20 as well as residue number 25:

select resid 15-20+25

You can also combine selection statements using the AND and or operator. and will select the atoms present in both the first and the second statement (intersection) while or will select the atoms present in the first or the second statement (union). The following example will select 5 atoms corresponding to the CA (c-alph) atoms in the residues 15-20:

select resid 15-20 and name CA

Read more about atom selection in PyMOL here.

0.4.1 Exercise

Create a selection with name “bsite” consisting of residues with IDs 27, 31, and 94. Display the selection sticks representation on zoom on it.

0.5 Colour the atom selections

Now that we have a few selection entries (protein, mtx, bsite) we can easily color these to contrast the different elements in the structure.

Coloring can be done using the command line. Below we color the mtx selection red and the protein blue:

color red, mtx
color blue, protein

Note that it is often useful to color by atom elements, i.e. to keep oxygens red, nitrogens blue, sulphurs yellow etc, and only adjust the colors of carbon atoms. In the command line it can be carried out with combining the color command with selection statements:

color green, mtx and elem C color red, mtx and elem O
color blue, mtx and elem N

Now we have coloured all carbon elements of the mtx selection green; oxygens red; and nitrogens blue.

1 Pymol Reference Card

1.1 Modes

Pymol supports two modes of input: point and click mode, and command line mode. The point and click allows you to quickly rotate the molecule(s) zoom in and out and change the clipping planes. The command line mode where commands are entered into the external GUI window supports all of the commands in the point and click mode but is more flexible and possibly useful for complex selection and command issuing. Commands entered on the command line are executed when you press the return key ⏎⏎.

Description	Code
Command help	help <keyword>

1.2 Loading Files

Description	Code
File loading	load data/test/pept.pdb
Loading from terminal	pymol data/test/pept.pdb
Toggle between text and graphics	Esc
Toggle Y axis rocking	rock
Stereo view	stereo on/off
Stereo type	stereo crosseye / walleye / quadbuffer
Undo action	undo
Reset view	reset
Reinitialize PyMOL	reinitialize
Quit (force, even if unsaved)	quit

1.3 Mouse Control

Description	Code
Set the center of rotation	origin <selection>

1.4 Atom Selection

Description	Code
General selection syntax	object-name/segi-id/chain-id/resi-id/name-id
Molecular system selection	/pept
Molecule selection	/pept/lig
Chain selection	/pept/lig/a
Residue selection	/pept/lig/a/10
Atom selection	/pept/lig/a/10/ca
Ranges	lig/a/10-12/ca
Ranges (multiple)	a/6+8/c+o
Missing selections	/pept//a
Naming a selection	select bb, name c+o+n+ca
Count atoms in a selection	count atoms bb
Remove atoms from a selection	remove resi 5
General selections	all, none, hydro, hetatm, visible, present
Atoms not in a selection	select sidechains, ! bb
Atoms with a vdW gap < 3 Å	resi 6 around 3
Atom centers with a gap < 1.0 Å	all near 1 of resi 6
Atom centers within < 4.0 Å	all within 4 of resi 6

1.5 Basic Commands

Some commands used with atom selections. If you are unsure about the selection, click on the molecule part that you want in the viewing window and then look at the output line to see the selection.

Description	Code
Fill viewer with selection	zoom /pept//a
Center a selection	center /pept//a
Colour a selection	colour pink, /pept//a
Force PyMOL to reapply colours	recolor
Set background colour	bg color white
vdW representation of selection	show spheres, 156/ca
Stick representation of selection	show sticks, a//
Line representation of selection	show lines, /pept
Ribbon representation of selection	show ribbon, /pept
Dot representation of selection	show dots, /pept
Mesh representation of selection	show mesh, /pept
Surface representation of selection	show surface, /pept
Nonbonded representation of selection	show nonbonded, /pept
Nonbonded sphere representation of selection	show nb spheres, /pept
Cartoon representation of selection	show cartoon, a//
Clear all	hide all
Rotate a selection	rotate <axis>, angle, <selection>
Translate a selection	translate [x,y,z], <selection>

1.6 Cartoon Settings

Setting the value at the end to 0 forces the secondary structure to go through the CA position.

Description	Code
Cylindrical helices	set cartoon cylindrical helices,1
Fancy helices [tubular edge]	set cartoon fancy helices,1
Flat sheets	set cartoon flat sheets,1
Smooth loops	set cartoon smooth loops,1
Find rings for cartoon	set cartoon ring finder,[1,2,3,4]
Ring mode	set cartoon ring mode,[1,2,3]
Nucleic acid mode	set nucleic acid mode,[0,1,2,3,4]
Cartoon sidechains	set cartoon side chain helper; rebuild
Primary colour	set cartoon color,blue
Secondary colour	set cartoon highlight color,grey
Limit colour to ss	set cartoon discrete colors,on
Cartoon transparency	set cartoon transparency,0.5
Cartoon loop	cartoon loop, a//
Cartoon rectangular	cartoon rect, a//
Cartoon oval	cartoon oval, a//
Cartoon tubular	cartoon tube, a//
Cartoon arrow	cartoon arrow, a//
Cartoon dumbell	cartoon dumbell, a//
B-factor sausage	cartoon putty, a//

1.7 Image Output

Description	Code
Low resolution	ray
High resolution	ray 2000,2000
Ultra-high resolution	ray 5000,5000
Change the default size [pts]	viewport 640,480
Image shadow control	set ray shadow,0
Image fog control	set ray trace fog,0
Image depth cue control	set depth cue,0
Image antialiasing control	set antialias,1
Export image as .png	png <image>.png

1.8 Hydrogen Bonding

Draw bonds between atoms and label the residues that are involved.

Description	Code
Draw a line between atoms	distance 542/oe1,538/ne
Set the line dash gap	set dash gap,0.09
Set the line dash width	set dash width,3.0
Set the line dash radius	set dash radius,0.0
Set the line dash length	set dash length,0.15
Set round dash ends	set dash round ends,on
Hide a label	hide labels, dist01
Label a residue	label (542/oe1), "%s" %("E542")
Set label font	set label font id,4
Set label colour	set label color,white

1.9 Electrostatics

There are a number of ways to apply electrostatics in Pymol. The user can use GRASP to generate a map and then import it. Alternatively the user can use the APBS Pymol plugin. Pymol also has a built in function that is quick and dirty.

Generate electrostatic surface (built-in)

generate electrostatic surface action > generate > vacuum electrostatics > protein contact potential

1.10 Pymol Movies (mac)

Description	Code
Move the camera	move x,10
Turn the camera	turn x,90
Play the movie	mplay
Stop the movie	mstop
Write out png files	mpng <prefix> [, first [, last]]
Show a particular frame	frame <number>
Move forward one frame	forward
Move back one frame	backwards
Go to the start of the movie	rewind
Go to the middle of the movie	middle
Go to the movie end	ending
Determine the current frame	get frame
Clear the movie cache	mclear
Execute a command in a frame	mdo 1, turn x,5; turn y,5;
Dump current movie commands	mdump
Reset the number of frames per second	meter_reset

1.11 Miscellaneous

Description	Code
Add hydrogens to a molecule selection	h add
Alias a set of commands	alias go,load 1hpv.pdb; zoom 200/; show sticks, 200/ around 8
Structurally align	align prot1////CA, prot2, object=alignment
Fit one molecule to another	fit <selection>, <target>
Copy at selection	copy <target>, <source>
Create a new selection	create <target>, <selection>
Delete a selection	delete <selection>
Save file	save <filename>, <selection>
Protect or deprotect a selection	[de]protect <selection>
Mask or demask to allow/stop selection	[un]mask <selection>
Align coordinates with axis	orient <selection>
Get the current rotation matrix	get_view
Input a rotation matrix	set_view
Safely refresh the scene	refresh
Store a scene	view <name>, store, <description>
Restore a view	view <name>, [recall]
Set a new colour	set_color <name>, <rgb>

1.12 Secondary Structures

Pymol has a secondary structure determination algorithm called dss, however it is better to use the DSSP algorithm and then define the limits manually.

Description	Code
Run dss	dss <selection>
Define helical structure	alter 11-40/, ss='H'
Define loop regions	alter 40-50/, ss='L'
Define strand structure	alter 50-60/, ss='S'
Rebuild the cartoon after alteration	rebuild
Get dihedral angle	get dihedral 4/n,4/c,4/ca,4/cb

1.13 Files

Description	Code
Change the working directory	cd <path>
List contents of current directory	ls
Print current working directory	pwd

1.14 Crystal Structures

To recreate crystal packing of molecules within 5 Å of pept in the pept.pdb (which must contain CRYST data), use the symexp command.

Description	Code
Crystal packing within 5 Å	symexp sym,pept,(pept),5.0

1.15 NMR Structures

NMR models should be loaded into the same object, but should have different states.

Description	Code
Load a model into an object	load <file>.pdb, <object>
Show all models in an object	set all states,1
Show only one object model	set all states,0
Show a particular model	frame <model_number>
Determine which model	get_model
Fit two structures to one another	fit <selection>
Fit and calculate the rms	rms <selection>
RMS without fitting	rms_cur <selection>
Fit ensemble structures	intra_fit <selection>,1
Calculate rms	intra_rms <selection>,<state>
Ensemble rms without fitting	intra_rms_cur <selection>,<state>

1.16 Changing Structures

Description	Code
Add a bond	bond atom1, atom2
Remove bonds	unbond atom1,atom2
Join two molecules together	fuse [atom1, atom2]

1.17 Old School Images

Load a .pdb, make cartoon view, set background to white then

Description	Code
Change the ray mode to 2	set ray trace mode,2
Make the lines thinner	set antialias,2
Raytrace the image	ray
